Magnetic Balance 2000A Hall Effect Current Transducer

MOQ : 100

Payment Terms : T/T

Delivery Time : 1-12 weeks

Packaging Details : Original packing

Rated measuring current IPN (A) : 2000

Measuring range IP (A) : 0～±3700

Turns ratio : 1:5000

Power supply voltage VC (V) : DC±(15~24)×(1±10%)V

Rated measurement output ISN (mA) : 400mA

Secondary side current consumption IC (@±24V) : ≤35mA+

Isolation withstand voltage : 12kVrms/50Hz/1min

Linearity δL (@IPN，TA=25℃) : ≤±0.1%

Contact Now

NT2000C-S/SP1( NACL.2000B1-S4 ) current sensor

Product Details

product manual

The magnetic balance Hall current sensor is suitable for accurate measurement of AC, DC and pulsating current isolation. The primary side and the secondary side are completely insulated during measurement.

product advantages	Applications	Reference standard
High precision	AC inverter AC	EN50178 EN50155
Good linearity	Battery powered
Low temperature drift	Converter/Inverter
Broadband	UPS/SVG
Quick response

Main electrical parameters
Rated measuring current IPN (A)	2000
Measuring range IP (A)	0～±3700
Turns ratio	1:5000
Power supply voltage VC (V)	DC ± (15 ~ 24) × (1 ± 10%) V
Rated measurement output ISN (mA)	400mA
Measuring resistance RM (Ω)
70℃ 85℃ @ ± 15V, ± 2000A: 0Ω ~ 7.5Ω @ ± 15V, ± 2400A: 0Ω ~ 4Ω @ ± 24V, ± 2000A: 3Ω ~ 27.5Ω @ ± 24V, ± 3700A: 0Ω ~ 3Ω
Secondary side current consumption IC (@±24V)	≤35mA+
Isolation withstand voltage	12kVrms/50Hz/1min

Accuracy-dynamic parameters
Basic error δi (@IPN,TA=25℃)	≤±0.4%
Linearity δL (@IPN,TA=25℃)	≤±0.1%
Zero output current IO (@IP=0, TA = 25℃)	≤ ± 0.5mA
Zero temperature drift IOT	≤ ± 0.8mA (-50 ℃ ~ + 85)
Response time	≤1µS
di/dt accuracy	＞100A/us
Frequency bandwidth BW	DC..100kHz

General data
Working temperature Ta	-40℃~+85℃
Storage temperature Ts	-45℃~+90℃
weight	≤1700g

Magnetic Balance 2000A Hall Effect Current Transducer

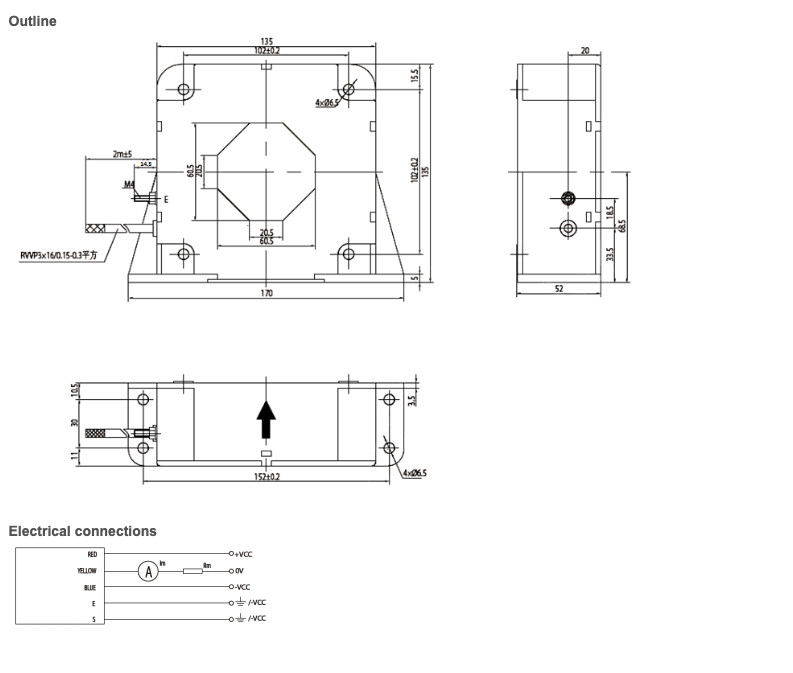

Mechanical characteristics
No tolerance	±1 mm
Sensor installation method one (recommended)	4 hole ø6.5mm 4 M6 steel screws
Recommended torque	4.5 N·m
Busbar size (recommended)	Ø60.5mm
Secondary side electrical connection	(RVVP3×16/0.15)

Remarks

1. When the measured current direction is consistent with the direction marked on the sensor, the sensor output ISN is positive.
2. The secondary side connection line of the product is preferably a shielded line. The shielding layer is close to the product end and the connection line can be connected to the case, and the negative power supply or power supply 0V.
3. The verticality requirements for the mounting screw holes of the power sensor: it is required to be level 8 or above (or below 0.06) in the national standard.
4. The flatness requirements for the installation surface of the power sensor:
(a). The flatness of the large plane installation is national standard 11 or above (or the flatness is less than 0.25mm);
(b). The flatness of the installation surface is designed with small round bosses It is required to reach the national standard level 12 or above (or the plane fluctuation is less than 0.5mm);
5. No tolerance ±1mm is noted;
