2000VA Magnetic Modulation 4us Response Voltage Transducers

Product Categories

Xiamen Sincery Im.& Ex. Co., Ltd.

Contact Now

MOQ : 100

Payment Terms : T/T

Delivery Time : 1-12 weeks

Packaging Details : Original packing

Rated voltage (A) : 2000V

Product number : NCV1-3000/SP3

Measuring range : 0～±3000V

working principle : ±15 × (1±5%)V

Rated measurement output : 50mA

Basic error : ≦±1 %

Linearity error : ≦0.1%

Zero output error (+25 ℃ ) : ≦±0.25mA

Contact Now

NCV1-3000/SP3 voltage sensor

Model specifications and technical parameters of the voltage sensor in the NCV1-3000/SP3 rail
Rated voltage (A)	2000V
Product number	NCV1-3000/SP3
Measuring range	0～±3000V
working principle	Magnetic modulation
Power supply voltage (V)	± 15 × (1 ± 5%) V
Rated measurement output	50mA
Basic error	≦±1 %
Linearity error	≦0.1%
Zero output error (+25 ℃ )	≦ ± 0.25mA
Response time	≦4us
Withstand voltage	9kV/50Hz/2min
Operating temperature	-40℃-+85℃

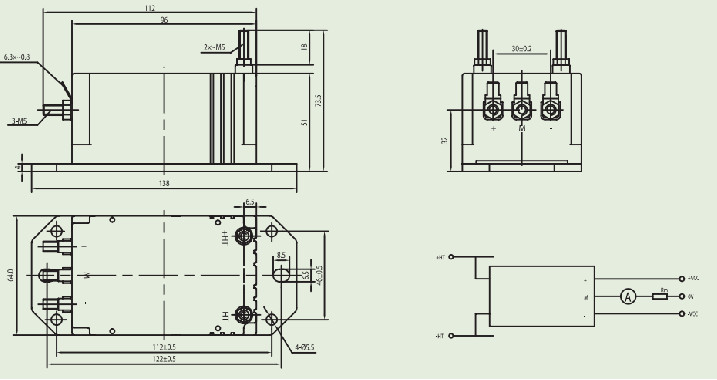

Dimensions of NCV1-3000/SP3 rail voltage sensor

2000VA Magnetic Modulation 4us Response Voltage Transducers
